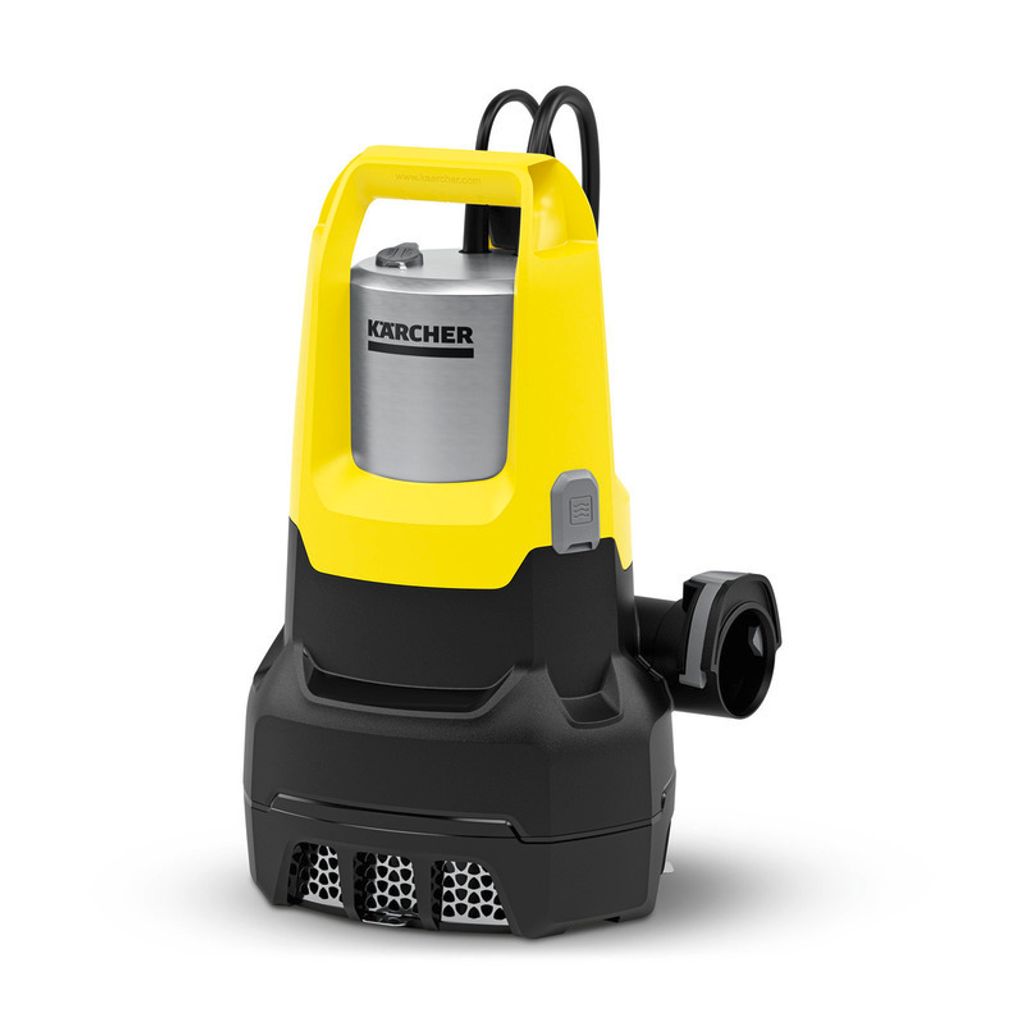

KARCHER SP22.000 DIRT LEVEL SENSOR 1645-8510 SUBMERSIBLE DIRTY WATER PUMP

RM 799.00
RM 799.00
RM 999.00
Nationwide shipping | HuaChian . Sarawak
Nationwide shipping
Secure payments | HuaChian . Sarawak
Secure payments
Authentic products | HuaChian . Sarawak
Authentic products
View More

Highlights

  • Automatically starts pumping dirty water upon contact with the adjustable level sensor.
  • Suitable for pumping water with dirt particles up to 30 mm in size at rates up to 22,000 liters per hour.
  • Includes a stainless steel prefilter to prevent blockages when pumping very dirty water.
  • Can operate in automatic mode with level sensor or continuous manual mode.
  • Features a Quick Connect thread compatible with multiple hose sizes and has a durable stainless steel housing.
✦ AI-generated

An individually adjustable level sensor starts the dirty water pump SP 22,000 Dirt Level Sensor immediately upon contact with water. If the water level drops below the level sensor again, the pump stops automatically after 15 seconds. The extremely powerful submersible pump is ideal for draining, for example, large garden ponds, flooded basements or construction pits, as it can reliably pump out dirty water (dirt particles of up to 30 mm) at a rate of up to 22,000 l/h. With even dirtier water, the integrated pull-down stainless steel prefilter serves to protect against blockages. The submersible pump can also be switched to continuous operation by means of the Automatic/Manual switch. It can reliably pump water away down to a residual water level of 35 millimetres – both in continuous operation and in automatic mode, when the level sensor is set accordingly. With the Quick Connect connection thread, 1", 1 1/4" and 1 1/2" inch hoses can be connected without complication. Thanks to the stainless steel housing and robust slide ring sealing, the pump has a particularly long service life.

Technical data

Max. motor rating (W) 750
Max. flow rate (l/h) < 22000
Delivery temperature (°C) max. 35
Delivery head (m) 8
Pressure (bar) max. 0.8
Grain size (mm) max. 30
Immersion depth (m) max. 7
After-running time (s) 15
Min. residual water, manual (mm) 35
Residual water height (mm) 35
Connection threadG1 1/2
Pressure-side connection threadG1/2 internal thread
Power cable (m) 10
Voltage (V) 230 - 240
Frequency (Hz) 50
ColourYellow
Weight without accessories (kg) 6.7
Weight incl. packaging (kg) 7.7
Dimensions (L × W × H) (mm) 238 x 293 x 354
APPLICATION AREAS

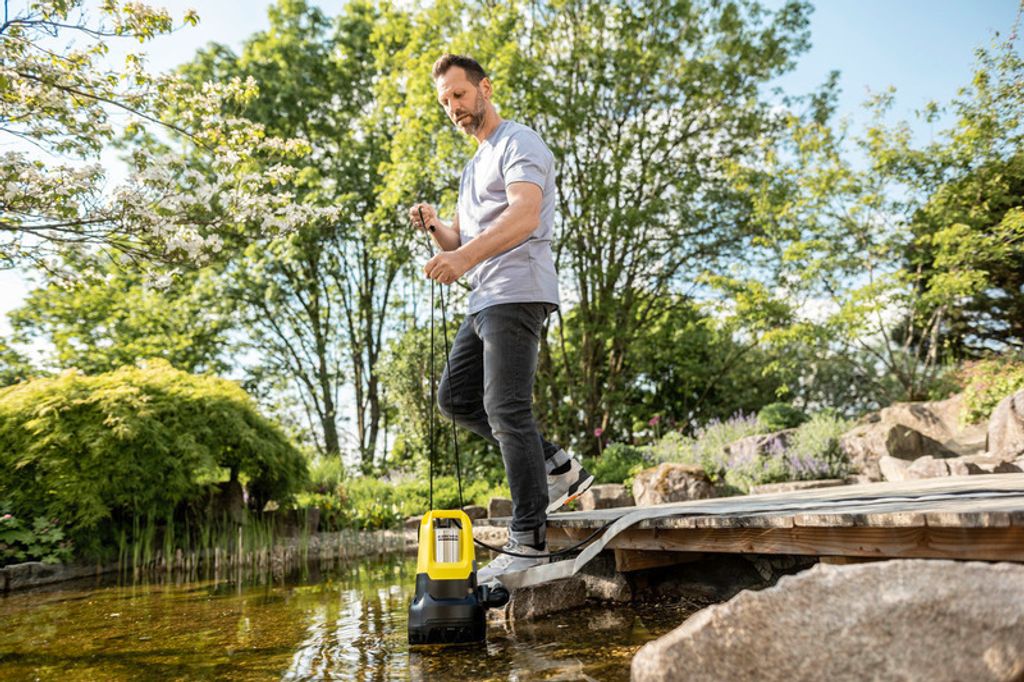

  • Pumping water from garden ponds
  • Use in event of flooding
  • Draining building pits up to max. 100 m³


Frequently asked questions

What types of water can the KARCHER SP22.000 pump handle?
The pump is designed to reliably pump out dirty water containing dirt particles up to 30 mm in size, making it suitable for water from garden ponds, flooded basements, or construction pits.
✦ AI-generated
Does the pump operate automatically or manually?
The pump has an individually adjustable level sensor for automatic operation, starting when it contacts water and stopping 15 seconds after water level drops below the sensor. It can also be switched to continuous manual operation.
✦ AI-generated
How low can the pump drain water?
It can pump water down to a residual water level of 35 millimeters in both automatic and continuous operation modes.
✦ AI-generated
What hose sizes can be connected to the pump?

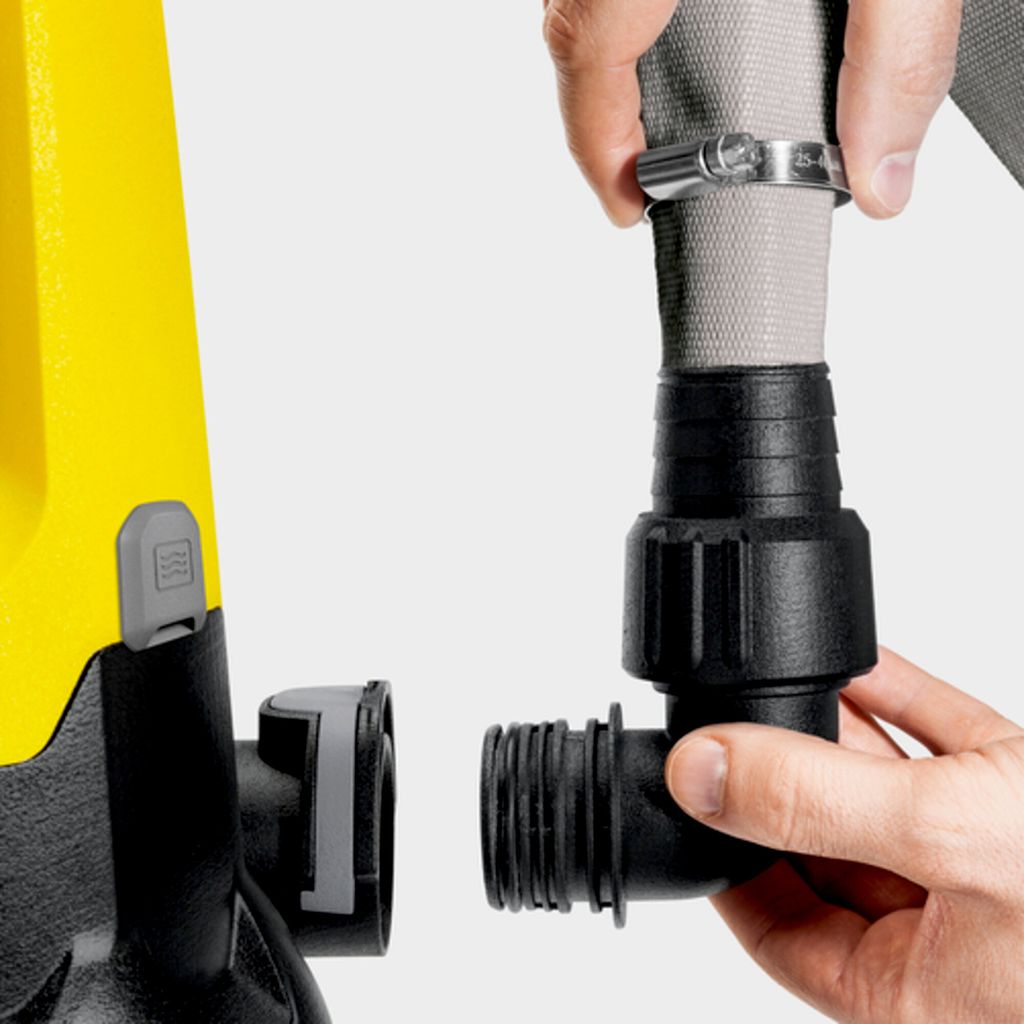

The pump features a Quick Connect connection thread that easily accommodates hoses sized 1 inch, 1 1/4 inch, and 1 1/2 inch without complications.
✦ AI-generated
Is the pump durable enough for long-term use?

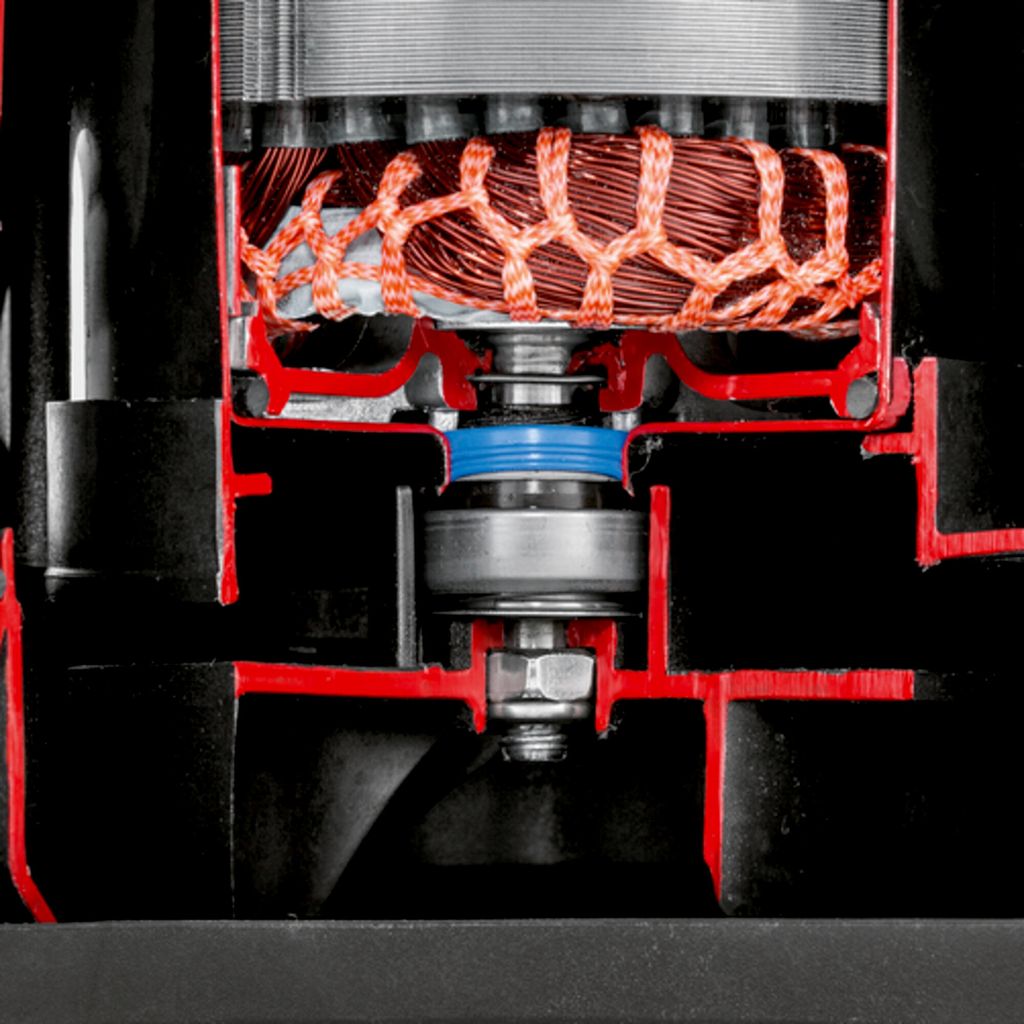

Yes, the pump has a stainless steel housing and a robust slide ring sealing, which contribute to a particularly long service life.
✦ AI-generated
